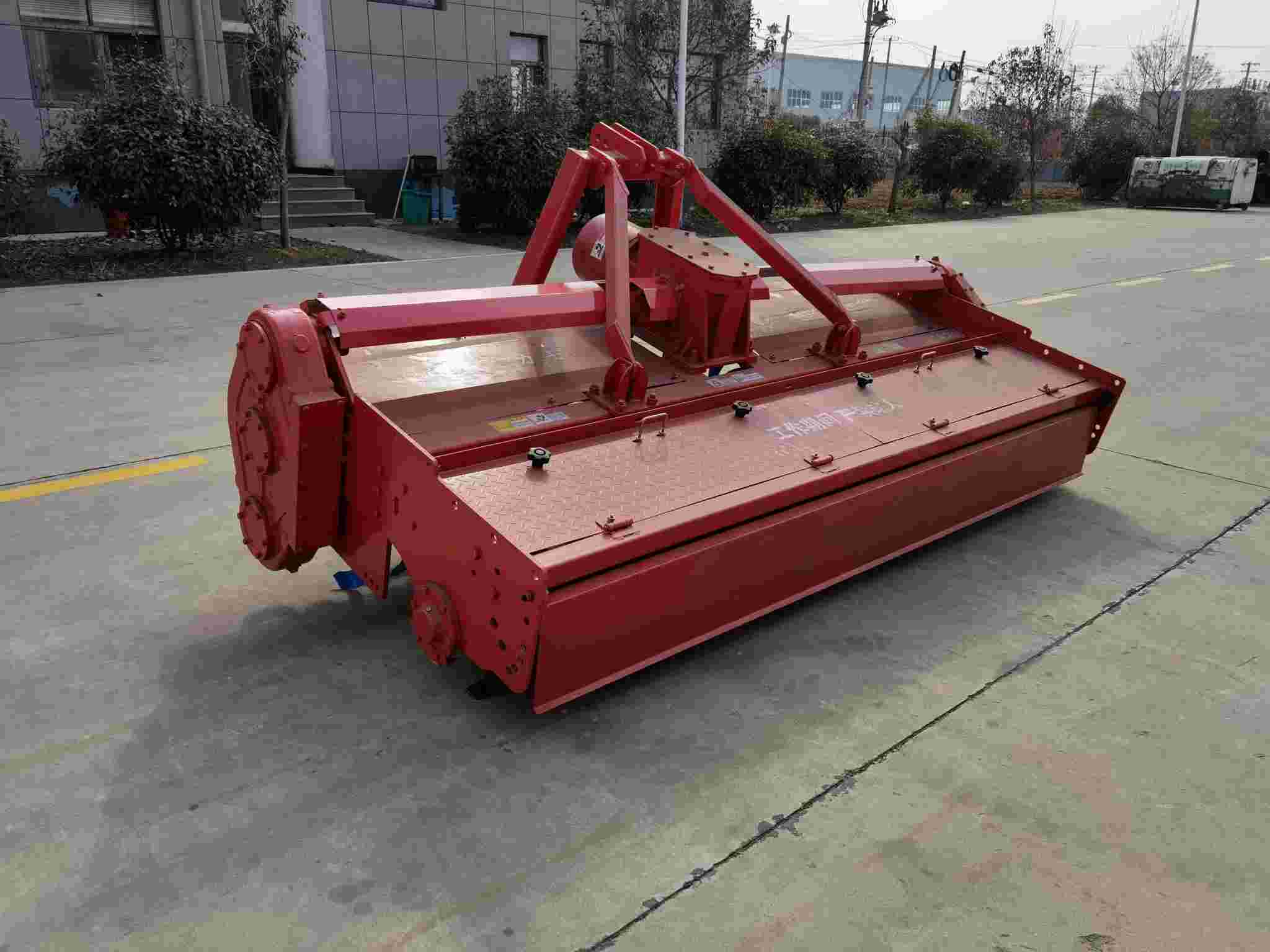

Double-axis rotary tillage, the surface soil will be fine after tillage, which is convenient for later seeding operation, and can replace agricultural double-pass rotary tillage, improve efficiency and reduce costs.The machine adopts a heightening gearbox to extend the service life of the universal joint transmission shaft. The whole machine is rigid, symmetrical, balanced and reliable. The plowing range is larger than the outer edge of the rear wheel of the matched tractor. There is no tire or chain track indentation after tillage, so the surface is flat, tightly covered, with high work efficiency and low fuel consumption. Its performance is characterized by strong soil crushing ability, and the effect of one rotary tillage can reach the effect of several plows and rakes. It can be used not only for early tillage or hydroponics of farmland, but also for shallow tillage and mulching of saline-alkali land to inhibit salt rise, stubble removal and weeding, turn over and cover green manure, vegetable field preparation and other operations. It has become one of the main supporting agricultural tools for mechanized land preparation of water and early land.
Rotary tiller model |
1GKN-140 |
1GKN-160 |
1GKN-180 |
1GKN-200H |
1GKN-230H |
1GKN-250H |
1GKN-280 |
Auxiliary power (kW) |
≥29.4 |
≥29.4 |
≥40.5 |
≥40.5 |
≥48 |
≥55 |
≥58.5 |
Tillage range (cm) |
140 |
160 |
180 |
200 |
230 |
250 |
280 |
Depth of tillage(cm) |
10-14 |
Dry farming10-16 Hydroponics14-18 |
|||||
Number of blades(piece) |
34 |
38 |
50 |
58 |
62 |
66 |
70 |
Model of rotary blade |
IT450 |
||||||
Design rotation speed of cutter roller(r/min) |
200~235 |
||||||
Structure type |
Frame type |
||||||
Form of connection with a tractor |
Three-point suspension |
||||||
Transmission mode |
Middle Gear Drive |
||||||
Rotational speed of tractor power output shaft |
540 |
540/760 |
|||||
Forward speed(km/h) |
Second gear |
Second gear\Third Gear |
|||||
2.5~6.5 |
|||||||
Productivity(hm²/h) |
≥0.20 |
≥0.20 |
≥0.20 |
≥0.20 |
≥0.20 |
≥0.20 |
≥0.20 |
Fuel consumption(kg/hm²) |
Arable land:15-18 Raking ground:12-15 |
||||||
Overall dimension (cm) (length * width * height) |
102*164*110 |
102*184*112 |
110*208*110 |
117*232*115 |
115*256*115 |
122*274*118 |
102*312*116 |
Filling amount of gear oil(kg) |
6 |
Packaging Detail: Iron pallet or wooden cases
Delivery Detail: By sea or By air
1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.Wooden Case or Iron Pallet.
2. The whole set of machines size are large as normal, so we will use Waterproof materials to packall of them. The motor, gear box or other easily damaged parts, we will put them into box.
