Agricultural Machinery Double-Disc Trencher is Light and Does Not Block Mud

Short Description:

1KS-35 series ditching machine adopts double disc sharpening operation, not only sharpen the soil evenly, but also the throwing distance can be adjusted, there is no mud blocking under the fuselage, the ditching load is light, and the ditching is very clear, the method can meet the requirements of wide agronomy of TIANGUI noodles, and can also be applied to the no-tillage operation of various crops, i. e. , the operation sequence of sowing first and ditching later on the uncultivated land, cover the seeds with the sharpened soil of a ditching machine.

Send email to us

Product Detail

Product Tags

Application of ditching machine

Chain Trencher can be used for digging buried pipelines, cables, optical cables and so on. Fruit tree ditch fertilization, yam deep pine harvest. Urban construction and road construction to curb, garden fence thickness, foundation pit and so on.
2. The utility model has the advantages of simple structure and convenient operation. High efficiency, large furrow depth, adjustable width. It can adapt to different soil operation, cable operation, water supply pipeline and so on.

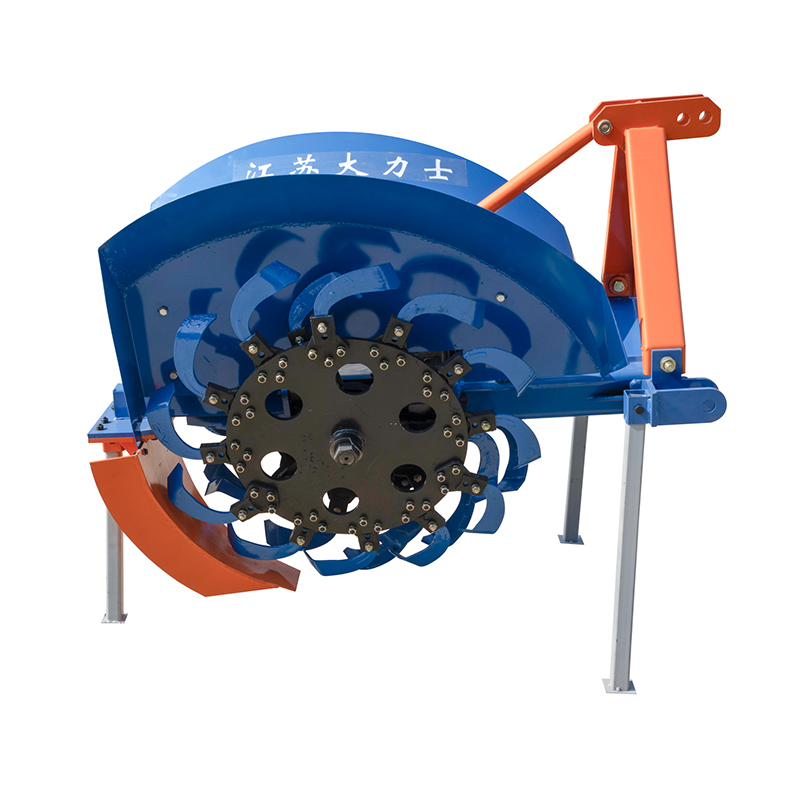

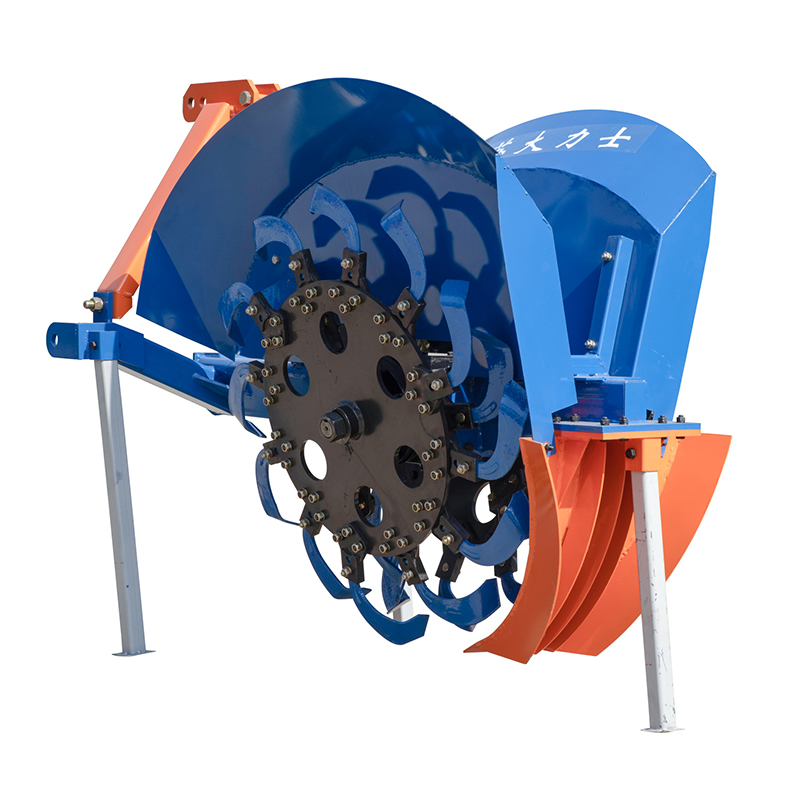

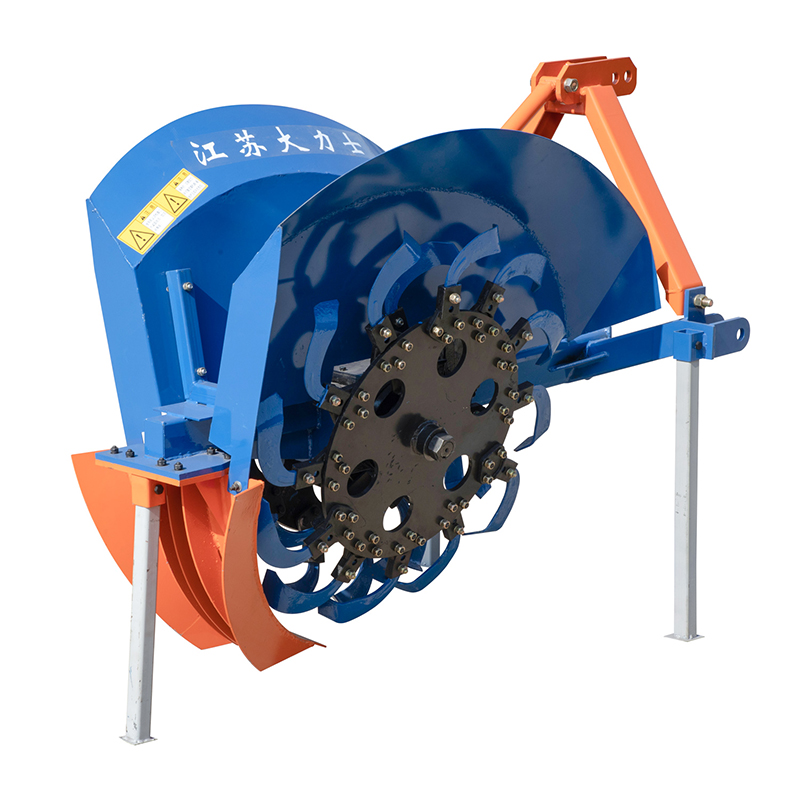

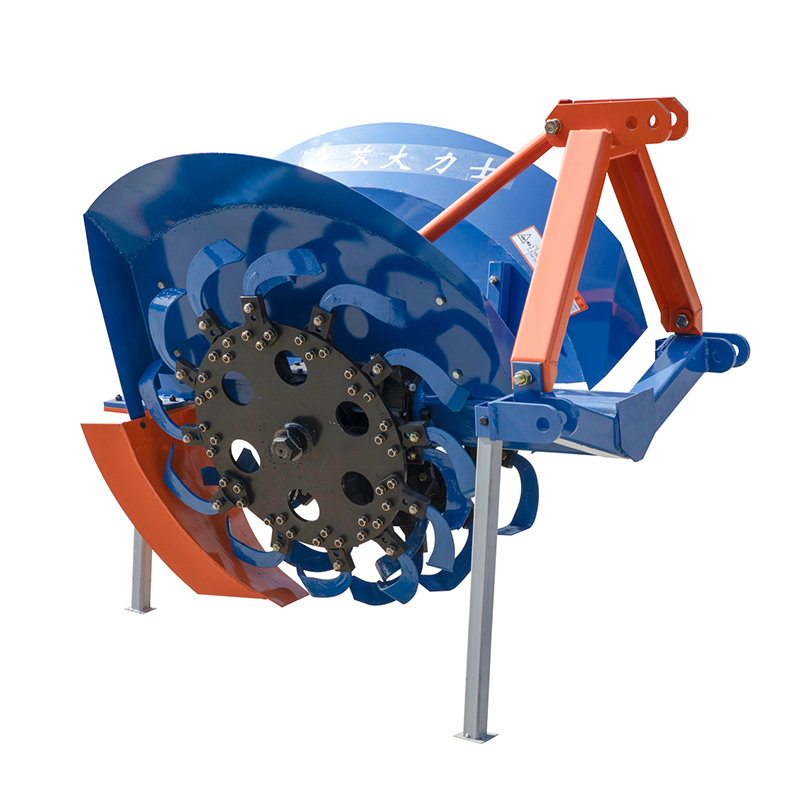

Product Display

Product Advantage

1.Using double disc grinding operation, not only grinding soil uniformity, but also adjustable distance.

2.The bottom of the fuselage does not block mud, ditches light load, ditches very clear.

3.It can meet a wide range of agronomic requirements, a variety of gutter operations, but also applicable to a variety of crops no-till operations.

Parameter

Models	1KS-35	External dimensions(Long * wide * high)(mm)	15008801150
Wide upper lip(mm)	350-400	The bottom of the ditch is wide(mm)	150-200
Ditch Deep(mm)	300-350	Matching horsepower	120-140
Power output shaft speed(r/min)	720	Ditch type	Double disc milling type
Throw up the radius(m)	≥2	Productivity(km/h)	2.1-3.5

Packaging & Shipping

Packaging Detail: Iron pallet or wooden cases
Delivery Detail: By sea or By air

1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.Wooden Case or Iron Pallet.

2. The whole set of machines size are large as normal, so we will use Waterproof materials to packall of them. The motor, gear box or other easily damaged parts, we will put them into box.
